5000D Series Digital Intercoms

The Firecom 5000D Series Digital Intercoms allow users to connect up to four radios for simulcast interoperability with mutual aid or other agencies to improve operational efficiencies and responder safety. The Digital Intercom is customizable to accommodate new or existing radio and intercom configurations, interfaces up to four additional devices including cell phone, and is 100 percent retrofit compatible with existing Firecom installations.

When combined with Firecom wireless base stations and headsets, the Digital Intercom enables interference-free communications for up to 40 wireless headset users per system. The unit can also handle up to 10 wired headsets or a mix of wireless and wired headsets. In addition, the Digital Intercom supports features that improve control and ease-of-use, including the ability to completely program and adjust radio activity, priority, volume and squelch from the faceplate to meet your specific operational requirements. The intercom provides 90dB SNR “audiophile quality” sound and supports multiple Water-resistant remote intercom heads for installations outside the apparatus or for multiple users in a command center.

Advanced functionality

• Up to 10 inputs for headsets or wireless base stations – up to 40 users
• Priority headset input
• Installs in-dash and/or with optional weatherproof remote head
• Fully digital platform with customized factory programming available

Flexible Auxiliary connections

• Up to 4 Aux in/outputs for computers, GPS, cell phones, MP3, etc.
• Radios and cellular phones interface using modular components

Multiple radios

• Monitor up to 4 radios simultaneously; transmit on one or more radios
• Indication of transmit and receive on every radio and aux connection
• Interfaces with over 400 different radios via “plug & play” connections

Touch controls for easy operation while driving

• Volume is instantly adjustable via touch pad
• Easy-to-read illuminated display shows continuous system status

Advanced Digital Signal Processing noise-reduction circuitry

• Clear voice communication – no ‘clipped’ words or background noise

Engineered durability

• Steel housing protects against heat, moisture, and impact damage
• Long-life 5 million cycle button faceplate
• Easy-to-clean face-plate
• Wide-range operating voltage: 9-17VDC
• Optional remote head is IP-66 rated water and dust-resistant for mounting outdoors and on vehicle exteriors; Up to 4 supported.

Compatibility

• Compatible with existing Firecom Base Stations and wired headsets
• Compatible with existing Firecom mobile radio interface cables
• Same form factor and connections as 30xxR intercoms

INTERCOM SPECIFICATIONS

Physical

• Weight: 42.6 oz. (without mounting bracket)
• Dimensions: 6.6″D x 6.1″W x 2.0″H (with mounting bracket)

Performance

• Digital encoding for secure, interference-free communications
• Supports a mix of up to 10 wired headsets and/or wireless base stations

Power

• 9-17VDC; 1A at 12V nominal

MIL SPEC

• Humidity per MIL-STD 810F and 810G
• Temperature Shock per MIL-STD 810F and 810G

Environmental

• Operating Temperature -40°F (-40°C) to +176°F (+80°C)
• Storage Temperature -40°F (-40°C) to +176°F (+80°C)

SAE

• Vibration per J1455, Sec. 4.9
• Electrostatic Discharge per J1113-13
• Radiated Immunity per J1113-21
• Conduct Immunity per J1113-11
• Radiated Emissions per J1113-41
• Salt Spray per J1455, Sec. 4.3

ISO

• Conducted Transients per 7637-2
• Quality Management System ISO 9001:2015

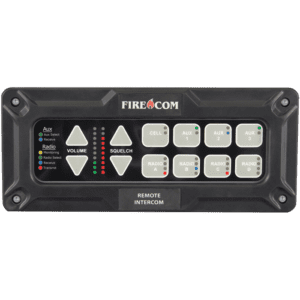

REMOTE HEAD SPECIFICATIONS

Physical

• Weight: TBD
• Dimensions: 0.5″D x 7.2″W x 3.1″ H

Power

• Supplied by intercom; 80mA per head (add to intercom fuse rating)

MIL SPEC

• Humidity per MIL-STD 810F and 810G
• Temperature Shock per MIL-STD 810F and 810G
• Chemical Exposure per MIL-STD 810F and 810G

Environmental

• Operating Temperature -40°F (-40°C) to +176°F (+80°C)
• Storage Temperature -40°F (-40°C) to +176°F (+80°C)
• Ingress Protection: IP-66 – dust-tight; water-tight at ≤ 1 meter immersion

SAE

• Vibration per J1455, Sec. 4.9
• Electrostatic Discharge per J1113-13
• Radiated Immunity per J1113-21
• Conducted Immunity per J1113-11
• Radiated Emissions per J1113-41
• Salt Spray per J1455, Sec. 4.3

ISO

• Conducted Transients per 7637-2
• Quality Management System ISO 9001:2008
